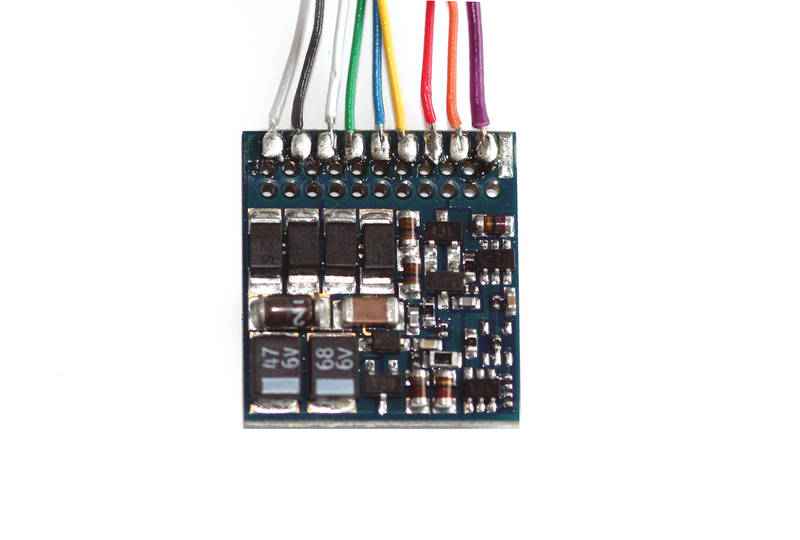

ESU 54620 LokPilot Fx V4.0, functional decoder MM/DCC/SX, 8-pin plug NEM652

ESU 54620 LokPilot FX V4.0 function decoder MM/DCC/SX

Specification:-

Operational modes:

• DCC 14, 28, 128 Speed steps
• DCC long/short addressing
• DCC Traction address (double heading)
• DCC LGB pulse control
• Lenz LG100, Roco brake unit
• Lenz ABC brake control
• Simo HLU commands
• DC Running
• Motorola 14, 28 speed steps
• Motorola address 1 -80
• Motorola address 1- 127
• Motorola address 1- 255
• automatic detection of operational mode

Function:

• 6 Function outputs whit short-circuit protection
• 250mA output per function
• 2 Logic level outputs
• Separate dim-able outputs
• Light effects such as Firebox flicker
• Time-controlled function outputs (un-coupling)

Programming

DCC Service mode programing modes:

• (register mode, Address only, Direct mode
• DCC POM (Program on main line)
• Programing mode for Marklin 60221

Specials:

• RailCom Feedback system
• Storage of current operation state
• Motorola wrong direction bit

Dimensions:

• 17.5x15.5x5.5mm
