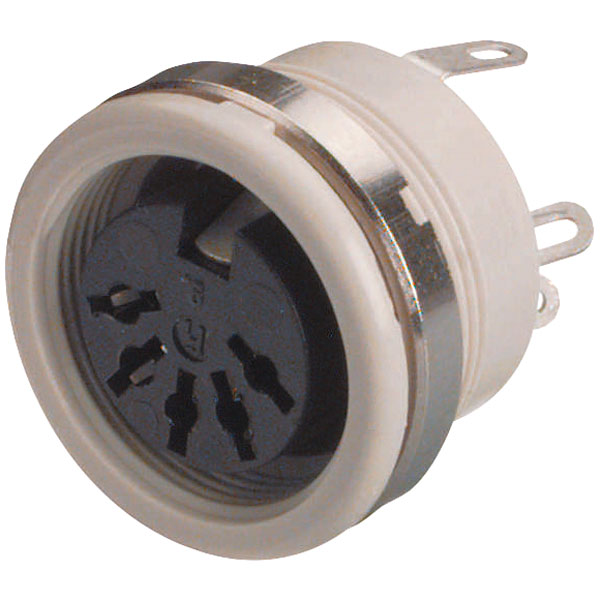

Hirschmann 931 351-517 MAB 7100 S 7-Pin Female DIN Socket, Panel Mount
A 7-pin panel mounting, locking DIN socket with mounting flange. Ideal for audio, video and data technology applications.
Colour: Grey
Connection (components): Soldering
Connector type: Socket, vertical vertical
Connector type (category): DIN connector
Contact material: Tin plated
Content: 1 pc(s)
Manufacturer part No.: 931 351-517
Material: Brass contact, tin-plated
Nominal current: 4 A
Nominal voltage: 34 V
Number of pins: 7
Protection type: IP30
Seal type: Screw-on
Specification: Installation with screw jack
Type: 7
Type (manufacturer type): MAB 7100 S
