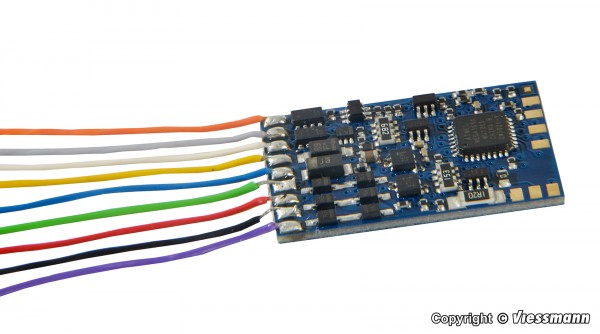

Viessmann 5249 Function Decoder HO
RailCom compatible, compact multi protocol function decoder for DC, DCC (2- and 4-digit addresses) and Märklin Motorola, with automatic protocol recognition.
All outputs are protected against overloading, in addition the decoder is protected against overheating.
The decoder has a SUSI interface as well as a connection for external energy storage, on soldering pads. 6 function outputs with the following functionalities:
- Function mapping (freely programmable functional key allocation)
- Dimming
- Flash
- Timer function for uncouplers.
2 outputs with 1 A permanently, 4 additional outputs with together 500 mA permanently.
Measurements:
| Length ca. | 11mm |
| Width | 9mm |
| Height | 2.6mm |
Instructions:
5249_instructions.pdf
