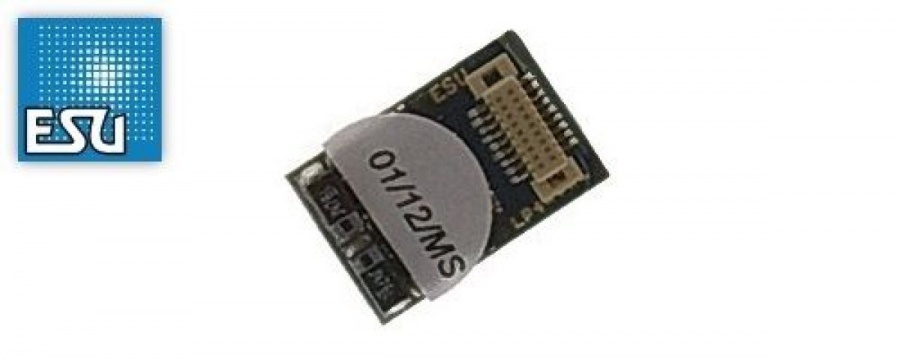

ESU 54686 LokPilot micro V4.0, DCC, Next18 interface

ESU 54686 LokPilot micro V4.0, DCC, Next18 interface

Save £2.64
Our Price:  £31.00 (VAT incl.)
Product Code:  54686
Brand:  ESU



No stock, discontinued

ESU Operation modes: NMRA/DCC with 14, 28 and 128 speed steps, prepared for DCC RailComPlusŒ¬ communication. DCC 2-digit and 4-digit addresses (long and short) Analog DC (de-selectable) Automatic recognition of operational mode and DCC speed step selection. Supports LenzŒ¬ LG100, LenzŒ¬ ABC brake mode and RocoŒ¬ braking sections Wrong-direction bit / stores operational status Switching speed and acceleration as well as deceleration key selectable Throttle: 0.75 A continuous load Runs DC and coreless motors Silent, safe 20 / 40 kHz pulse width frequency motor regulation Motor terminal overload protected. Fifth generation load back EMF (de-selectable). Function outputs: 2 outputs; 150mA load per output approx. 280mA total load of all function outputs. Outputs short circuit protected 2 logic outputs; Connection for ŒéPowerPackŒ‚ Free function allocation (function mapping) Dimensions: 10.5mm x 8.1mm x 2.8mm (Next18: 15.0mm x 9.5mm x 2.8mm)

ESU 54686 LokPilot micro

Be the first to Write a review for this item!

Related Products

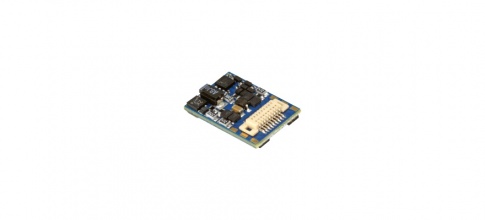

ESU 59818 LokPilot 5 micro DCC/MM/SX/M4, Next18, Gauge N, TT
£37.52 (VAT incl.)
  5 in stock right now

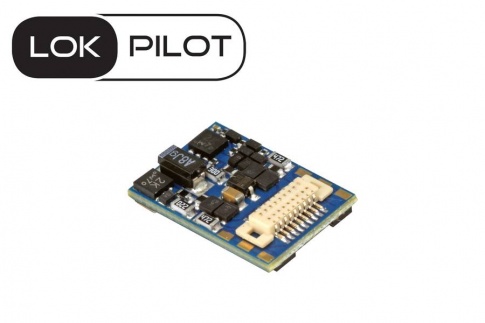

ESU 59828 LokPilot 5 micro DCC, Next18, Gauge N, TT
£37.52 (VAT incl.)
  Out of stock - preorder now
ESU Gauge N LokPilot 5 Fx micro DCC/MM/SX, Next18
£40.38 (VAT incl.)
  6 in stock right now
