LoDi-KMS Reverse Loop Module for Digital Railways
  Zoom
LoDi-KMS Reverse Loop Module for Digital RailwaysLoDi-KMS Reverse Loop Module for Digital RailwaysLoDi-KMS Reverse Loop Module for Digital Railways

LoDi-KMS Reverse Loop Module for Digital Railways

Our Price:  £39.95 (VAT incl.)
Product Code:  LoDi012

Availability:



Pre-order

+

LoDi-KMS Reverse Loop Module for Digital Railways.

LoDi-KSM



The LoDi-KSM is a simple reverse loop module for the digital model railway. The data format is irrelevant.

No contact track is required. Switching takes place in a flash. The module and the connected tracks are also protected against short circuits. The LoDi-KSM is RailCom-capable and forwards the locomotive data to the feedback device via the reversing loop.

In addition, the KSM has a dip switch with which the polarity of the reversing loop can be switched via an externally connected switching decoder.

What is a Reverse loop.

Why do you need a reverse loop module on a model railway layout?



Basically, reversing loop modules are only required for the 2-pipe system.



The reversing loop module automatically switches a reversing loop.

A reverse loop is created, as you can see in the picture, when the power supply is crossed when the train is reversing or turning in a section of a circle when it returns to the track.

Here you can now see that the red line crosses the current via the blue line.

This is then called a loop.

In order to avoid a short circuit here, you need a  special switch or relay that reverses the polarity of the supply voltage of the track in the reversing loop.

How you are using the device can be seen by scrolling down.

The properties of the LoDi-KSM



  • Reversing loop module (KSM) for your digital model railway
  • The reverse loop module is independent of the track format.
  • Our KSM cannot be detected by feedback, which means that your feedback does not show "occupied" just because the reverse loop module is connected to it.
  • Only the locomotive triggers an occupancy message as usual.
  • The KSM is fully RailCom-capable. The RailCom data channels 1 and 2 of the locomotive are sent back via the
    KSM section.
  • You can switch between automatic and manual mode, for this you must have a normal turnout output on your decoder or LoDi operator.
  • Our modules also support the LoDi-KSM
  • LoDi operator 16-SD-FL

1. The LoDi-KSM and its connections.

  • (1):
    The track cable coming from the booster or digital center is connected here.

  • (2):
    The reversing loop or the track section that is in the reversing loop is connected here.

  • (3):
    Serves for manual operation via a switch decoder.





2. Overview of connection details

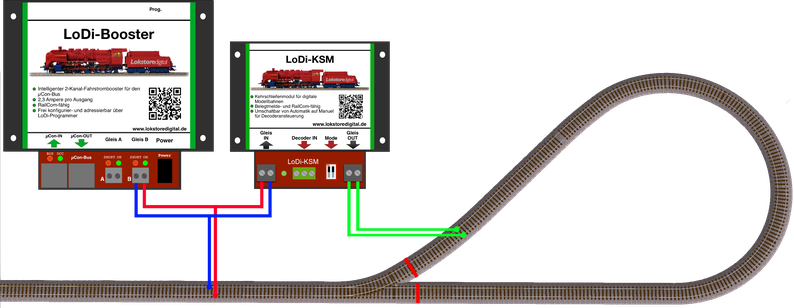

Here you can see the connection variant on a LoDi booster.

All common digital centers and boosters from any manufacturer can be connected to the LoDi-KSM. The module works completely independently.

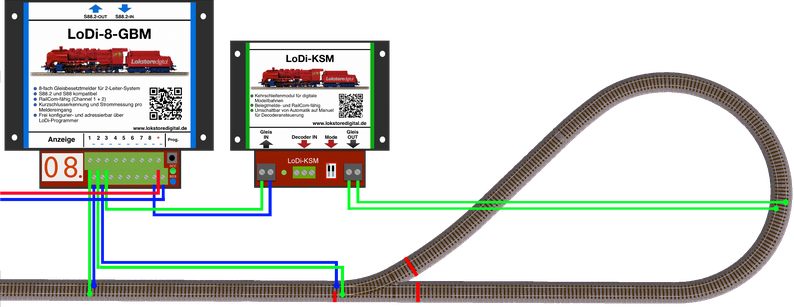

This connection example uses the LoDi-KSM via an occupancy detector.

This is required if you want to report your return loops or report occupied.

Occupancy reporting modules from any manufacturer can be connected to the LoDi-KSM.

3. Connection to LoDi operator or turnout decoder

As already mentioned, this has

LoDi-KSM a connection for a turnout decoder of any kind.

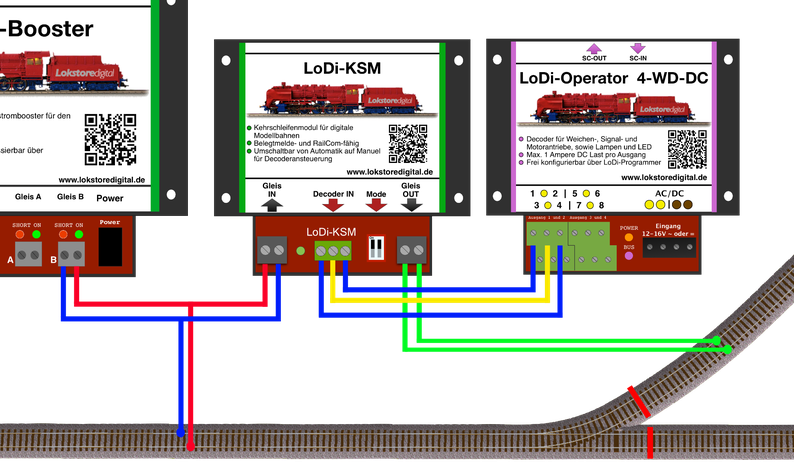

On the next photo you can see a connection example to a  LoDi operator 4-WD-DC.

If you now want to switch off the automatic of the module, the two dip switches at (1) must be set to "off". After that, the module can only be controlled via the switch terminals (decoder IN).



The module has 2 operating modes that can be set:

  • Dip switch ON / ON
    module works in auto mode,
    ie it switches over when a consumer is detected .
    In addition, manual operation is also available in auto mode, which means that it is double-protected.
  • Dip switch OFF / OFF
    The LoDi-KSM only works via the decoder IN terminal.





4. Technical data

Dimensions:

Length 8.9 cm

Width 10 cm

Height 3.5 cm



Weight:

83 grams



At the digital terminal, i.e. in digital operation, the decoder can be supplied with up to 22 volts.

Pay attention to the information provided by the manufacturer of your digital center or booster!

The power supply of the decoder must be done with AC voltage!

Permissible from 12 - 24 volts alternating voltage!



Loadable by consumers with 3 amps for a short time and 2 amps continuously



Be the first to Write a Review for this item!
