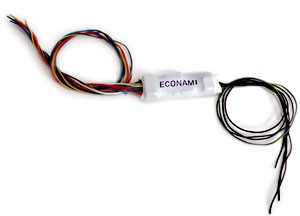

Soundtraxx 882101 Econami UK Diesel 4fn 1A 16 Bit Sound Decoder
  Zoom

Soundtraxx 882101 Econami UK Diesel 4fn 1A 16 Bit Sound Decoder

Soundtraxx 882101 Econami UK Diesel

Our Price:  £84.95 (VAT incl.)
Product Code:  882101
Brand:  SoundTraxx
Bar Code:  812165023073

Availability:



3 in stock

+

The smallest sound decoder made by SoundTraxx, this micro 1-amp, universal-style format is ideal for small models with minimal space. It includes an optional capacitor or can be wired to a CurrentKeeper (P.N. 810140) to maintain performance during brief power interruptions.

SPECIFICATIONS:
  • Motor Stall Current: 1A Max
  • Function Outputs: 4
  • Function Current: 100mA (each output) Max.
  • Audio Amplifier: 1W, 8-Ohm Load
  • DCC Track Voltage: 7.5V - 22V
MEASUREMENTS:
  • Length: 27mm
  • Width: 10.5mm
  • Depth: 5mm
DECODER FEATURES:
  • Compatible with NMRA DCC Standards & RPs
  • 28-function support, plus directional and E-Stop functions
  • Flex-Map function mapping to easily assign any function to any function key
  • High-quality 16-bit sound
  • 40+ sound effects in each version
  • Selectable exhaust chuffs or prime movers
  • Function-activated brake with synchronized sound effect
  • 7-Band Equalizer
  • 20 selectable Hyperlight effects
  • Hyperdrive2 advanced motor control and Switching Mode for enhanced slow-speed control
  • Motor-synced Dynamic Digital Exhaust (steam)
  • Standard, 3-point, and user-loadable speed curves
  • Operates on DCC and DC layouts
DIESEL SOUND EFFECTS:
  • 6 UK Prime Movers (English Electric Class 20, Brush Traction Class 31, English Electric Class 37, Brush Traction Class 47, Alstom Class 66/67 (EMD 710) and BR Derby Class “Lightweight” DMU)
  • Startup
  • Shutdown
  • Multiple Exhaust Notches
  • 10 Airhorns
  • 2 Compressors
  • 4 Couplers with buffers
  • Dynamic Brake
  • Radiator Fans
  • and many more!

For each horn selected, both a high and low tone are available (playable on F1 & F2). F3 plays a pre-recorded “Two-Tone” sequence based on the horn set selected. If CV 121 is set to a non-zero value, the alternate horn in the reverse direction is enabled.

A Class 37 motor driven air compressor has been included as the default air compressor.

PRIME MOVERS: CV123
Class: Bit Value:
English Electric Class 20 Value 0
Brush Traction Class 31 Value 1
English Electric Class 37 Value 2
Brush Traction Class 47 Value 3
Alstom Class 66/67 (EMD710) Value 4
BR Derby Class “Lightweight” DMU Value 5
AIRHORNS CV120 AND 121:
Type: Bit Value:
Class 20 Front Value 0
Class 20 Rear Value 1
Class 31 Front Value 2
Class 31 Rear Value 3
Class 31 Alternate Value 4
Class 37 Front Value 5
Class 37 Rear Value 6
Class 47 Front Value 7
Class 47 Rear Value 8
BR Derby Class 108 “Iris” Value 9
