ECoSDetector 50094

ECoSDetector 50094

Our Price:  £199.90 (VAT incl.)
Product Code:  50094
Brand:  ESU



Out of stock - preorder now

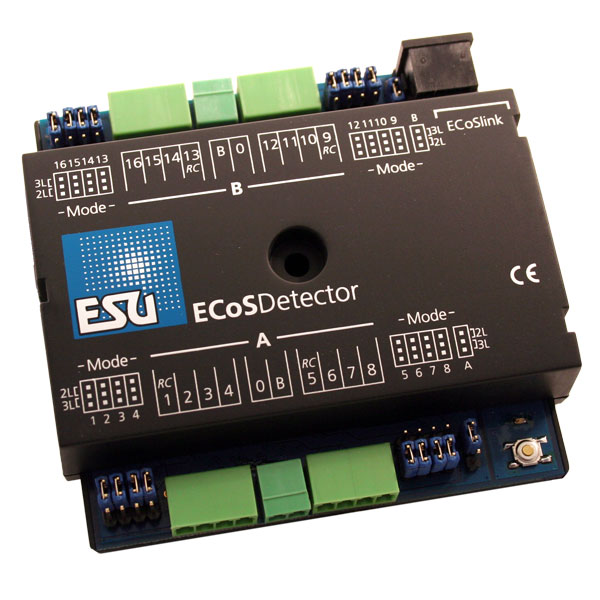

Our ECoSDetector feedback modules should be used to automate train operations. Beside the usual track occupancy detection, the train specific identification number can be read. It also enables the implementation of an external track control board.On larger layouts, the operator would want to determine the actual position of locos and trains. With the knowledge of which track section is currently occupied or of which track is still free in the hidden yard, an automated operation is made possible.The ECoSDetector is compatible with all ECoS command stations or Central StationŒ¬s (providing the Central StationŒ¬ has been updated with the Central StationŒ¬ upgrade software) and is able to detect up to 16 track sections. Two-rail or three-rail tracks can be directly connected to the module. Beside the 16 track occupancy detectors or feedback sections, each ECoSDetector can also detect a locomotive ID on up to four track sections, providing that RailComŒ¬ decoders are used. If desired, the ECoSDetector functionality can be extended with the ECoSDetector Extension module. When docked to the side of the ECoSDetector, if offers up to 32 outputs, each displaying the status of the track sections with a control light or driving a suitable block signal.Detection and feedbackThe ECoSDetector is able to monitor up to 16 track sections and reports the presence of a loco (track occupancy). Each of the 16 inputs has a maximum current capability of 3A. The ECoSDetector module also has two separate power inputs, and can be supplied from two separate Booster units.Opto-couplers are used to provide a reliable detection. Two or three rail operation is easily selected through jumpers.Input devicesUp to 16 regular switching devices can also be used as inputs. Reed switches, detection track sections, push buttons or toggle switches can all be connected to the inputs. The information is then processed in the command station.Train ID detectionBeside conventional track occupancy detection, each ECoSDetector has the additional ability to monitor four of the 16 track sections for train identification: Via the RailComŒ¬ technique (so-called äó_local detectorsäóì) you will not only easily find out that thereäó»s currently a loco on this track section, but also identify which specific loco it is (train ID detection). However, this only works with RailComŒ¬-compatible loco decoders.SmartWith the knowledge of the train specific position, new functions can be implemented, using the route control module of the ECoS command station. For example, you can automatically activate the horn of a loco when it is about to pass a railway crossing or determine which loco is parked in the hidden yard.It is also possible to de-bounce switch inputs or track occupancy detectors electronically to ensure a reliable feedback in case of unreliable contact or very dirty tracks.ECoSlink connectionEvery ECoSDetector can be directly connected to the command station via the ECoSlink bus. Beside all ECoS command stations you can also use the Central StationŒ¬ (updated with the Central StationŒ¬ with software upgrade by ESU) The galvanic isolation of the bus systems and the command station guarantees the best-possible reliable operation and a reliable data transmission to the command station.All ECoSDetector modules will be detected automatically by the command station and the information integrated in the operation control routine. The configuration of the devices can be also carried out directly with the command station after installation.UpgradeableWhen needed, the ECoSDetector software can be upgraded to add new functionalities. The command station will perform the required updates completely automatically. This will guarantee at all times that the ECoSDetector remains at the most current technical status.Ordering information Art.No. Description 50094 ECoSDetector feedback module, 16 digital inputs, of which 4 inputs are RailComŒ¬ feedback sections. Digital inputs for 2-rail or 3-rail operation reversible, OPTO 50094

Be the first to Write a review for this item!

Related Products
ECoS 50098 Detector RailCom
£99.99 (VAT incl.)
  Out of stock - preorder now
ESU 50095 Detector Extension
£51.33 (VAT incl.)
  Out of stock - preorder now
ESU 50096 Detector Standard
£80.86 (VAT incl.)
  Out of stock - preorder now
