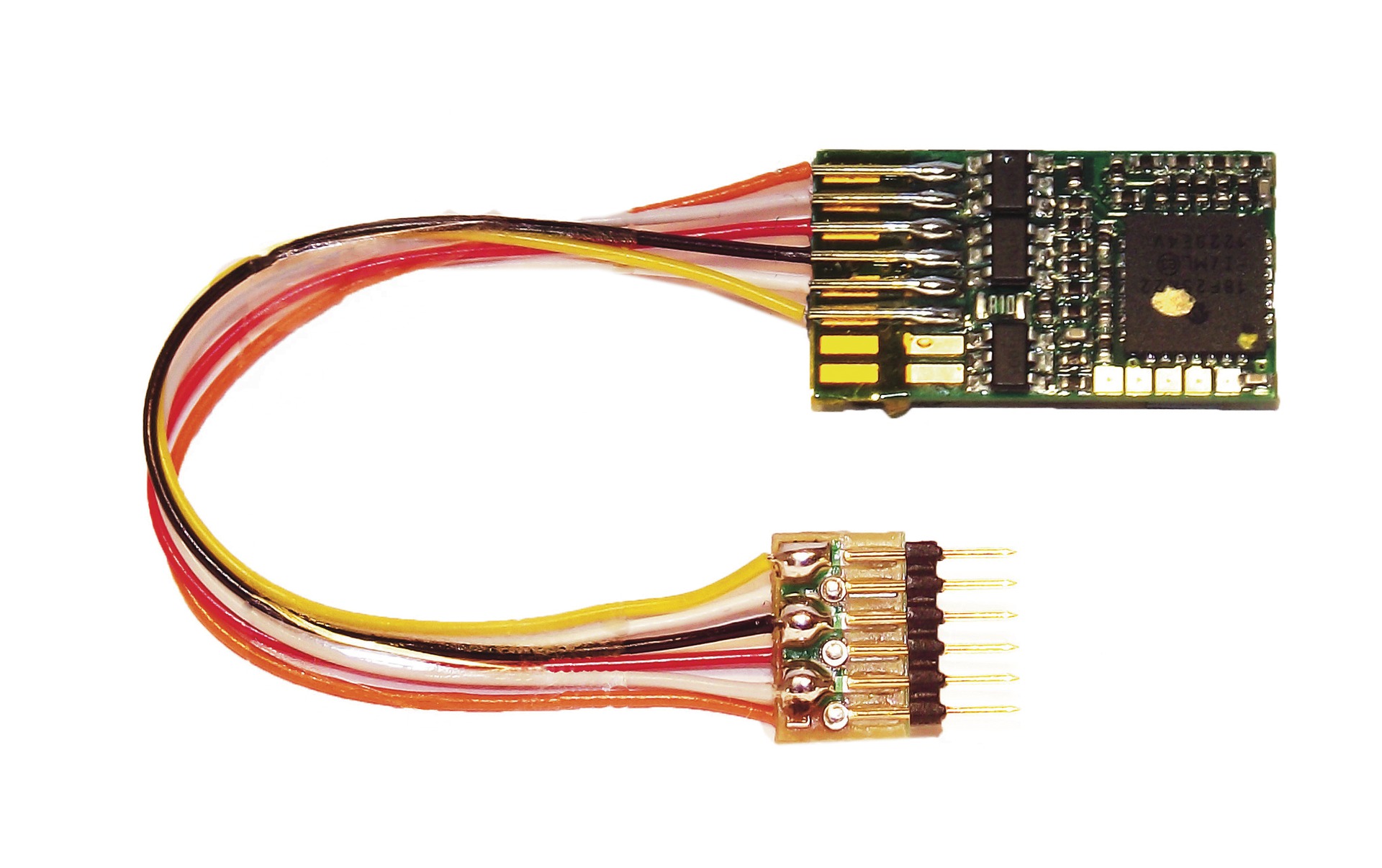

Fleischmann 687403 - DCC decoder with feedback features and 6-pin plug (NEM 651). For DCC according to NMRA standards and Motorola*-protocol. For locomotives with 6-pole interfaces according to NEM 651 standards. RailComŒ¬ and update enabled. Multi protocol operation possible. Motor control. Support of braking distances. Locomotive addresses programmable. Comfortable changes of the operation parameters possible that means that the locomotive needs not to be opened. Power surge protection Technical data: Motor 100 mA Functions 800mA (in total) Dimensions 20x11x3,5 mm Length of pigtail: 80 mm RailComŒ¬ is a registered trademark of the Lenz GmbH, Gieíôen * Motorola is a registered trademark of Motorola Inc., Schaumburg, I,US. Specifications: Electrical Digital decoder DCC & Motorola Light output load einzeln und in Summe max. 800 mA Function outputs 2 x Licht Output current Motorstrom max.1000 mA Switchable light change yes Measurements Dimensions (LxWxH) 20 x 11 x 3,5 mm
