GAUGEMASTER DCC90 Ruby Series
MULTI SCALE

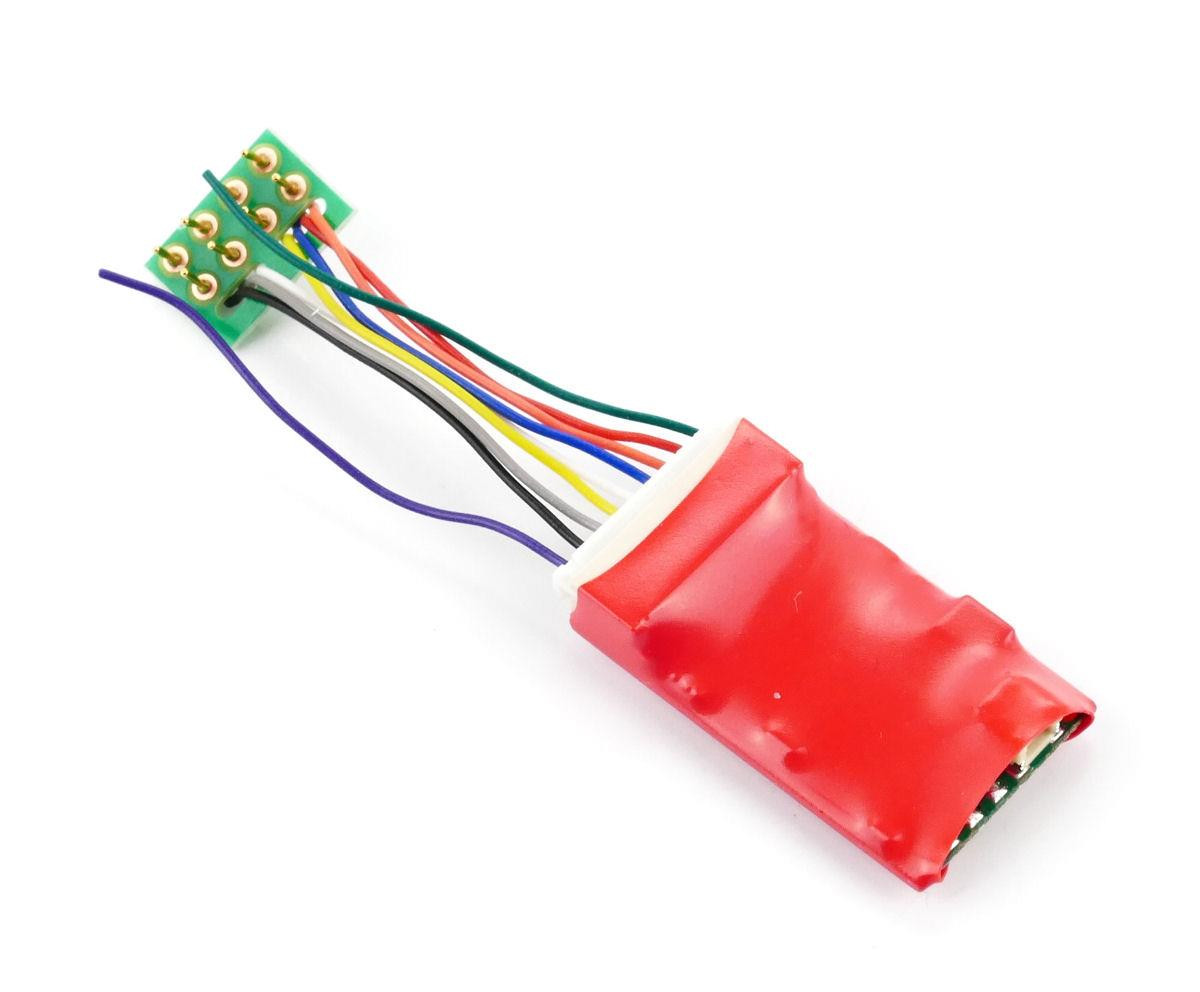

The DCC90 is a large 8 pin decoder which is fitted with a removable 25mm harness including 2 function wires. Fitted in the decoder is a small 2 pin socket which can have the PowerPal inserted into it (sold separately), This helps keep the locomotive moving in dirty or dead track sections.
Features:
- 2 Digit and 4 Digit Addressing
- 14, 28 or 128 Speed Steps
- Smooth Operation
- Constant Brightness Lighting
- Direct Mode Programming
- Motor Isolation Protection
- Advanced Consisting
- Socket to Add PowerPal
Specifications:
| NO. OF PINS | 8 |
| NO. OF FUNCTIONS | 2 |
| SPEED STEPS | 14, 28 or 128 |
| CURRENT RATING | 0.5A |
| MOTOR CURRENT RATING | 1.5A - 2.0A Max |
Measurements:
| LENGTH | 27mm |
| WIDTH | 17mm |
| THICKNESS | 7mm |
| HARNESS LENGTH | 25mm |
