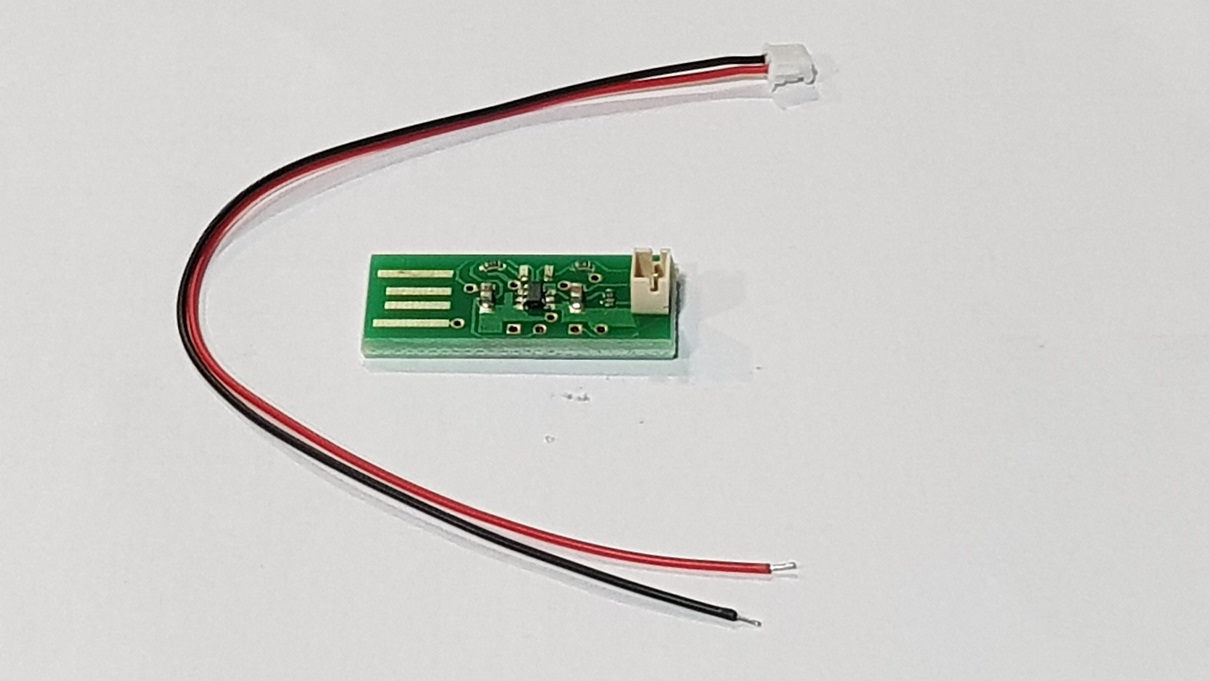

Sol-Expert 72658 LIPO Charging Board with 100 mA Charging Current
The LIPO charger LA-USB is a USB charger for single-cell LIPO batteries. This practical charger has been developed to charge the small LIPO batteries. It is simply plugged into the laptop, USB power supply or even power bank and charges single-cell LIPO batteries. The battery cannot be overcharged.
The charging current is initially 100 mA and decreases automatically towards the end of the charging cycle. The universal charger is suitable for our small 50 mAh batteries as well as for the large 350 mAh batteries. Only the charging time varies depending on the battery.
CHARGE INDICATOR:
- The red LED shows the charging process
- If the green LED lights up, the battery is full
TECHNICAL DATA:
- Dimensions: length: 12.5 mm, width: 31 mm, height: 8 mm
- input: 4.4 - 6 V max 100 mA
- output: max. 4.2 V max 100 mA
