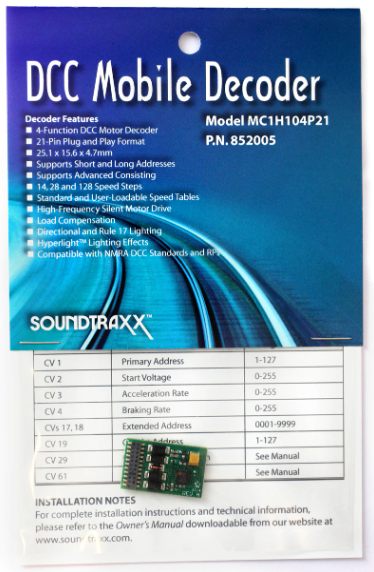

SOUNDTRAXX - 852005/MC1H104P21 21 pin 4 Function DCC decoder
SOUNDTRAXX - 852005/MC1H104P21 21 pin 4 Function DCC decoder
Description

HO-scale, 4-function decoder that measures 25.1 x 15.6 x 4.7mm. This decoder has a 21-pin connector arranged according to the NMRA Standard that easily plugs into the factory-installed PCB of many models. This decoder will operate in DCC only.

Dimensions: 25.1 x 15.6 x 4.7mm
Max. Motor Stall Current: 1A
Max. Function Current: 100mA (each output)
Function Outputs: 4
DCC Track Voltage: 21 Volts Maximum

Features / Specification
Decoder type
21pin MTC
Motor current, continuous
1.0A
Function Outputs
4
Reviews (0)

Be the first to Write a review for this item!

SOUNDTRAXX - 852005/MC1H104P21 21 pin 4 Function DCC decoder

STX852005
£18.50 inc. VAT
Out of stock - preorder now
