YaMoRC YD8008 CDU Soleniod

YAMORC YD8008 CDU Soleniod

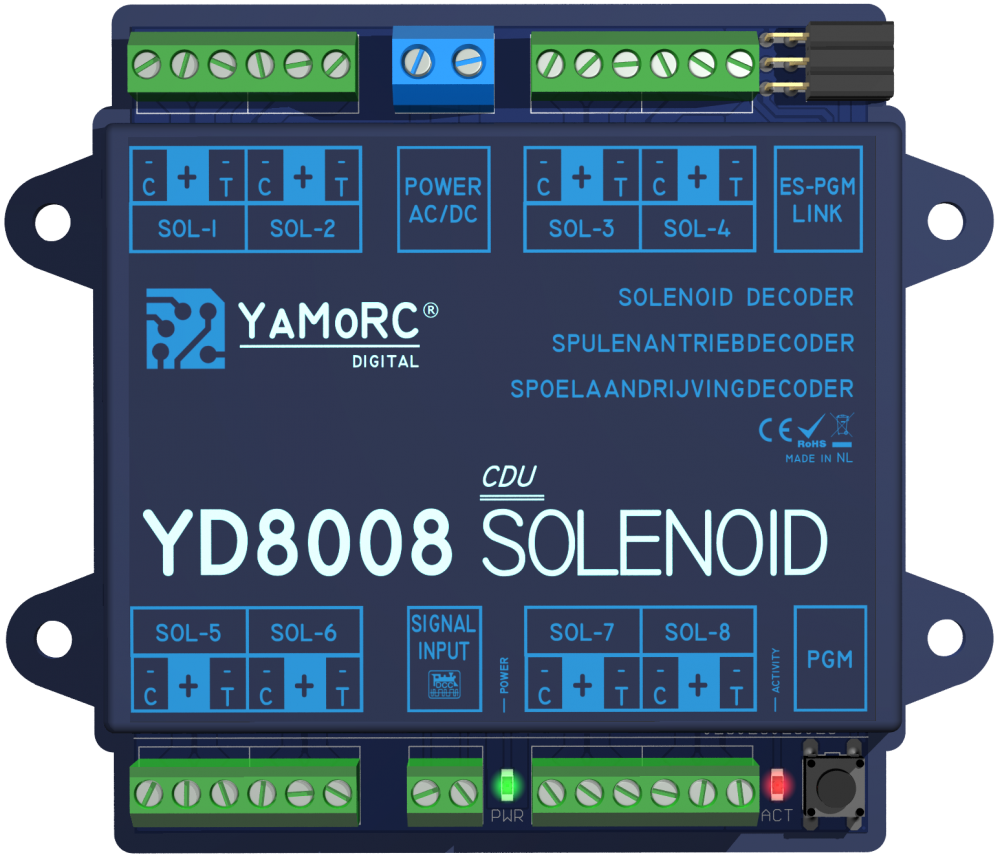

Specially designed to cope with, high-current, solenoid point-motors, the YD8008 is our 8-fold solenoid decoder with intelligent CDU.

Details:

It presents the following features:

• Eight independent 9.5Amp solenoid outputs
• Smart, 9400 uF CDU, monitoring charge levels for safe and powerful switching
• Only 380 mA power consumption during charging
• Very simple basic-setup (base address), by pressing the programming button and switching the desired turnout address
• No complicated CV settings.
• Clear text configuration based upon our new ES-Link technology.
• With our YD9101-Config or YD7100-Command, configuration can be done via built-in web interface. No need for PC-software or Phone/Tablet Apps !
• Eight address to output mappings, each mapping can a free choice address which can switch any and every output
• Sequential output activation based upon pulse time and CDU charge level.
• CDU start-up delay adjustable to prevent tripping short circuit protection in boosters
• Very modest power supply requirements. Even for SEEP/Gaugemaster motors a 15V/500mA wall wart is more than enough.
• Not suitable for motorized point motors. For these motors, use our YD8116. This also counts for MTB point motors.
• For two-wire solenoid motors, like Kato, adapter YD6940 should be used.

Manual Download (English):

YD8008.en.pdf
