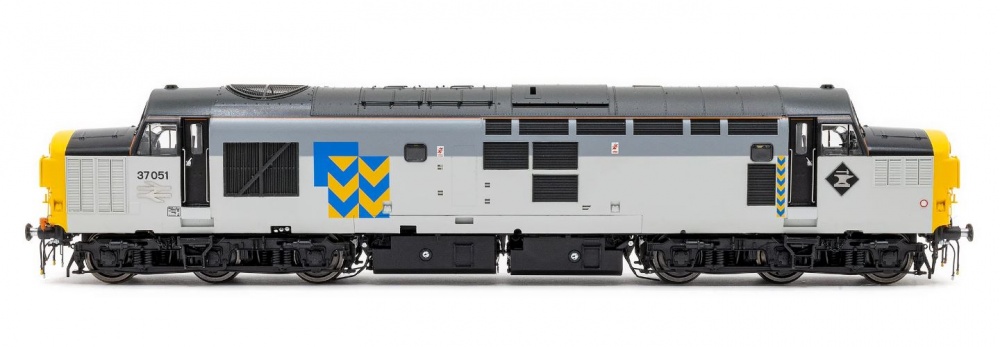

Accurascale 37051 Railfreight Triple Grey Class 37/0 Locomotive

Accurascale 37051 Railfreight Triple Grey Class 37/0 Locomotive

OO Scale/ 1:76

• Late 1980s/early 1990s period
• Railfreight Metals triple-grey
• Split headcode nose with plated headcode boxes
• Scottish 'car style' headlight (fully working)
• Original nose grilles
• Cutaway bufferbeam cowling with oval buffers
• Steam heat bufferbeam configuration with air/vac/control/MW pipes
• Original windscreens with as built cab layout
• Intermediate single-riveted roof with boiler exhaust and large cab roof vent
• Fabricated bogies
• Original fuel tank configuration
• Late EE cantrail grilles
• Plated bodyside water filler and associated steps (one left unplated)
• Optional miniature snowploughs included

Common Features:


• Highly detailed OO scale model, 1:76.2
• Heavy die-cast metal chassis
• Accurate tumbleholme, nose, cab roof and cantrail curves taken from 3D Laser scan and extensive surveys
• Timeframe specific details, including but not limited to;
  • Bogies (Fabricated and three variations of Cast)
  • Fuel tanks (As built and with later smooth-sided long range fuel tank)
  • Early Class 37/0 features frost grille, boiler filler panel and access steps
  • Early Class 37/0 features illuminated split headcode displays with a selection of different four-character headcodes
  • Class 37/6 have operational WIPAC light clusters and top headlight and numerous different nose slides all including multiple working socket
  • Three styles of buffer: large round Oleo, oval and squared oval
  • Three styles of nose grilles: as built, refurbished ‘split’ and refurbished ‘single piece’
  • Boiler exhaust, and two styles of plated boiler panel
  • With or without bufferbeam skirts
  • With or without cab roof vents and bodyside windows
  • Nose and roof aerials and antennas (where applicable)
  • Three styles of windscreen: standard, centre toughened and all toughened
  • Three styles of cab interior: as built, refurbished and modern DRS locos
  • Four bufferbeam variations with different piping configurations
  • Door kickplates where applicable

• Multiple body and nose slides to accurately represent almost every member of the class, including three variations of cantrail grille: early EE (for D6700-D6704), later EE and RSH
• Four roof styles: Original double riveted, single riveted, welded and welded with antennas
• Separately applied etched metal and high fidelity plastic detail parts, including grab handles, aerials, steps, wipers, nameplates, crests and more.
• Etched metal door kickplates (where applicable), ‘frost’ grille (where applicable) & super fine etched metal roof grille
• Scale width wire handrails
• Turned brass roof-mounted horns on centre headcode examples
• Full underbody tank detail with brackets and pipework
• Bogies feature separate footsteps, etched footsteps, brake cylinders, speed recorder, end brake rigging and very fine brake chain
• Brake blocks on trucks (bogies) in line with wheels (can be moved for EM/P4 gauges)
• Numerous other locomotive-specific details yet to be revealed!
• RP25-110 profile OO gauge wheels with fine scale ‘drop in’ EM (18.2mm gauge) and P4 (18.83mm gauge) wheels available separately
• Accurate high-fidelity miniature snowploughs
• Fully sprung metal buffers, extra-fine factory-installed pipework and screw couplings
• Correct height mini-tension-lock couplers with NEM socket as well as a fully detailed bufferbeam
• Provided DCC ready [21Pin MTX Socket] or Factory DCC Sound Fitted [ESU LokSound 5]
• Every model includes PowerPack / Backup Power Capacitor Bank for up to ten seconds of power free running, flicker free lighting and continuous sound
• DCC Sound Versions include;
  • ESU LokSound V5 DCC Chip
  • Customised Dual-Speaker Technology with;
    • Large EM2 Style Bass Speaker
    • Smaller 'iphone' style cube for higher frequencies

• High Performance traction, to include;
  • High-quality five-pole motor with two flywheels
  • Metal Helical Gear box for maximum performance and slow speed running
  • Gearing arranged so locomotive can achieve a scale top speed of 100 mph (160 km/h)
  • DCC ready with PowerPack Super-capacitor for uninterrupted power and super low speed running
  • All wheel drive and all wheel pickup

• Fully detailed Lighting Pack, including:
  • Directional lighting on DC and DCC
  • Fully functional Headlights per prototype
  • Engine Bay Lighting (with visible Prime Mover)
  • WIPAC light clusters where appropriate with day and night-time settings
  • Separately switched cab lighting and illuminated, details driver’s console, auto off on movement
  • Switchable red tail lights

• RP25-110 wheels OO wheels with provision for re-gauging to p4 and EM gauge
• Minimum Radius 438mm (2nd Radius Set-track)
