2,4Ghz controlled miniature decoder, which allows for the first time to run the smallest car`s 1:87 (eg: Smart from the company Busch)

Infrared inputs and outputs for distance control

16 freely programmable function outputs for LEDs, without resistor

PWM motor control (uphill and downhill same speed)

For the first time with return journey

Controllable via PC or DCC digital control unit (Zimo, Roco, ESU, Lenz, Uhlenbrock, Tams ...)

Power supply via Lipos

Firmware, updates and CV programming via radio

Charge state of the Lipo over radio at the PC

Size LxWxH 16.3x12x4mm

Content:

Soldered to the decoder.

4x white Led, for headlights front

2x yellow Led, for turn signals in front

1x rear light carrier (tail light, turn signals left and right, reverse gear, license plate illumination)

1x distance sensor front

Cable for engine: orange and gray

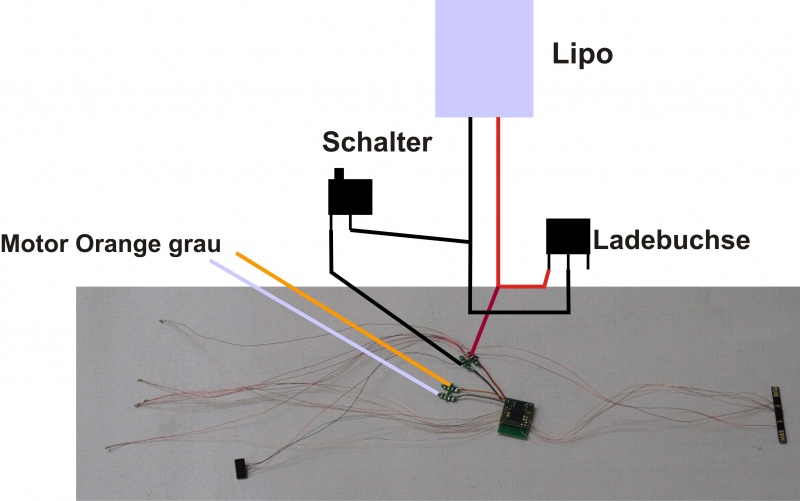

Cable for power supply: red and black, the black must be switched on the switch as in the picture, otherwise the battery is discharged from the quiescent current of the decoder and the distance sensor.
