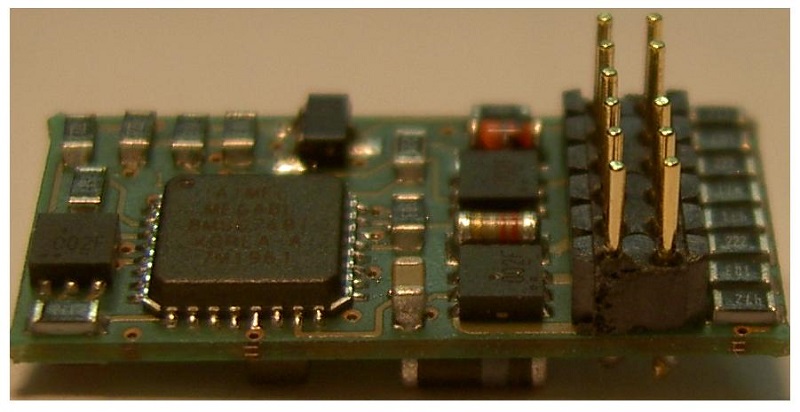

DCX51-P12 - 1A Lokdecoder mit PluX12 The locomotive decoder DCX51-P12 is suitable for all AC and DC motors in N-gauge locomotives to H0. The maximum total load may not exceed 1A.Dim. (LxWxH) 18,6x9,5x (total height with plug 7mm), (overall height without plug 3,6mm)The DCX51-P12 offers high frequency 16kHz or 32kHz motor control for Faulhaber motors. Alternatively, there are also infinitely adjustable 30-150 Hz for traditional motors.The DCX51-P12 offers available with 14, 28 or 128 speed levels, load regulation, full address space 1-10240 and the option on the main track to be programmed 'on-the-fly'. Full NMRA-compatible (DCC data format) DCC data format prepared Duplex Communication (bidi) Braking by unbalanced signal (brakes with diodes) Full "function mapping" as per NMRA-assembly Function outputs separately dimmable Dimming frequency 1.2 kHz Aut. Decoupling, timing for digital clutch, American lighting effects such as flashing, Fade Out, Flashing alternately, Single Pulse Strobe, Double Strobe, Flashing Headlight, Ditch Light left, Ditch Light beacon right Rotary, Gyralite, Mars Light, soft start (slow glimmer of functions) Full address space 1-10240 Shunting, showcases mode, a button-shunting backwards decreased Speed äó†äó†...... Evaluation of the chain pulses via F1 or F4 Speed äó†äó†table CV67-CV94 Optimizable load balancing (P and I controller) High frequency motor control 16kHz or 32kHz Low-frequency motor control of 30 to 150 Hz can be selected Optionally 14, 28 or 128 speed steps 0.8 Amp motor current digital or analog mode 'On the fly' Programming Hard Reset for resetting the CV values äó†äó†to factory settings (CV1 = 0) User CV's to store personal data Separately adjustable braking time with HLU (also intermediates) Signal controlled speed influence (HLU Zimo, switchable) Number recognition (Zimo, switchable) Fully programmable with Lokmaus (also values äó†äó†and CVs to 255) Reliable overload protection (motor and auxiliary outputs are protected against overcurrent) 2 CVs groups freely selectable (eg. For club and private applications) Standard version: 4 additional functions enhanced short circuit protection, Solder pads for decoders minus and plus of rectifier (connecting storage capacitor)The DCX51-P12 is fully NMRA compatible and in all systems that use the NMRA DCC data format, applicable (eg Digitrax, Lenz, LGB, Uhlenbrock, Zimo, Roco 'digital is cool', etc.) dimensions ONLY 18,6x9,5x3,6 mm
