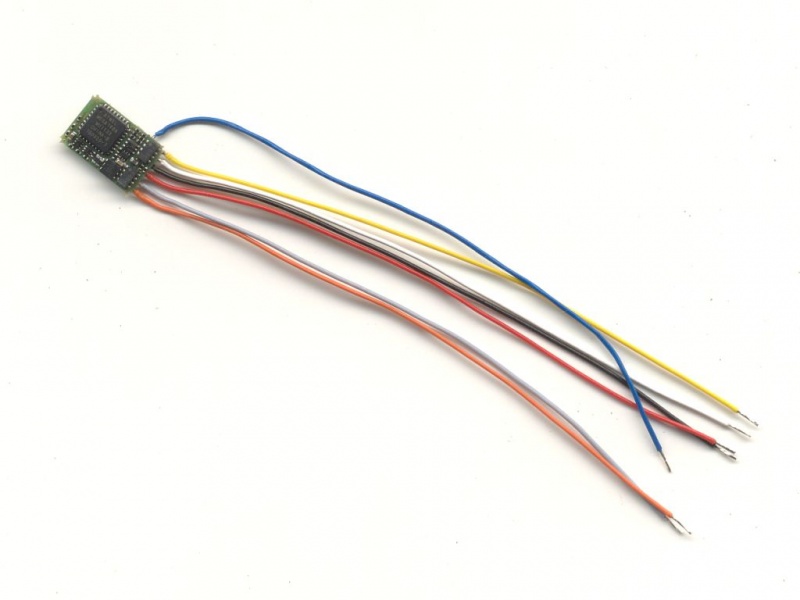

Lenz 10310-02 "Silver Mini+"0.5/0.8A with cables. 2 Function outputs Manual in German, English and French The Digital Plus Silver Mini locomotive decoder is suitable for all DC locomotives with continuous current draw of 0.5Amp or less. The characteristics of the decoder are: Super smooth and silent high frequency back emf motor control Supports Automatic Braking Control (ABC) Shunting speed Suitable for operation with 14/27 or 28/128 speed steps Operation on conventional DC layouts is possible or may be disabled Motor output = 0.5A continuous 0.8A max Motor and function outputs have short circuit protection Two function outputs rated at 100mA each with advanced function mapping Directional or independent lighting with dimming and special effects Support for Multiple traction and long addresses (Loco addresses up to 9,999) Support for programming on the mainline (Programming on Main POM) Support for all forms of programming as described in NMRA RP-9.2.3 RailCom SUSI solder points - new to 10310-02 Size: L 10.6 x W 7.5 x H 2.6mm
