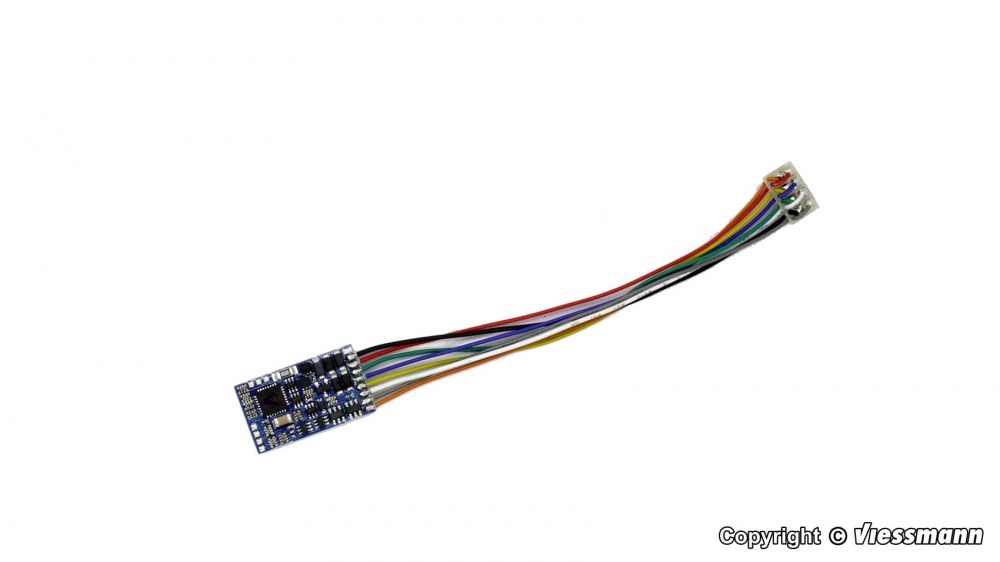

Viessmann 5245 Locomotive Decoder with 8-Pole Interface Plug "New Generation" HO
Miniature multi-protocol locomotive decoder suitable for RailCom, DC, DCC (2- and 4-digit addresses) and Märklin Motorola, with automatic protocol recognition.
Adjustable minimum and maximum speeds as well as a freely programmable speed step table (28 steps), adjustable high frequency load regulation, also suitable for coreless motors, with 14, 28 and 128 speed steps and shunting mode.
Drive current 1 A continuously, 1.8 A peak. 4 function outputs, with additional features:
- Function mapping
- Direction-dependent headlights
- Dimming
- Flashing
The max. current of the function outputs is 500 mA.
All outputs are protected against overloading, in addition the decoder is protected against overheating.
The decoder has a SUSI interface, as well as a connection for external energy storage, as soldering pads.
Measurements:
| Length ca. | 2.4cm |
| Width | 1.42cm |
| Height | 0.2cm |
Instructions:
Download Instruction CLICK HERE
