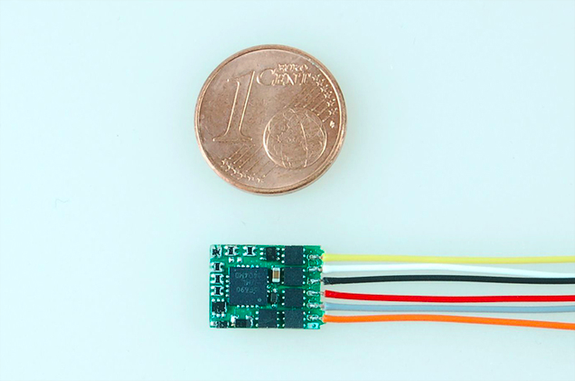

Kuehn N45 Decoder with wires only.

Kuehn N45 Decoder

Modes:-

• DCC
• Motorola
• DC analog operation
• automatic detection and switching of modes
• RailCom

Motor Control:-

• Suitable for DC and bell armatures motors
• adjustable load control
• Drive frequency 16/32 kHz for quiet motor operation or 120 Hz for older motors
• Motor output protected against short circuits
• Switchable braking / starting delays

Function outputs:-

• 4 outputs loadable with 200mA each
• outputs protected agains short circuitŒæ
• SUSI interface

Dimensions:- 8.9 x 11.7 x2.3mm cable length apron 120mm
