LDT RS-8 Feedback Module with integrated occupancy detector
  Zoom
LDT RS-8 Feedback Module with integrated occupancy detectorLDT RS-8 Feedback Module with integrated occupancy detectorLDT RS-8 Feedback Module with integrated occupancy detector

LDT RS-8 Feedback Module with integrated occupancy detector

Our Price:  £70.50 (VAT incl.)
Product Code:  RS-8
Brand:  LDT
Bar Code:  4038264023622

Availability:



2 in stock

+

RS-8 Feedback Module with occupancy detector for the RS-feedback of the Lenz Digital plus system.

Features of the feedback RS-8

  • for connection to the Lenz LZ100 or LZV100 from Lenz you can have up to 128 units or with LR101 and LS100
  • Suitable for the monitoring of 8 track sections with a current load up to 3 Ampere. A peak current up to 7 Ampere are temporary acceptable. Isolated rails or track sections to be monitored for occupancy will get simply the digital current via the output clamps of the feedback module. The track sections can be isolated as 1-pole or as 2-poles.
  •  The 8-fold track occupancy module RS-8 is divided into two 4-fold occupancy monitors. This makes it possible to monitor tracks of two different booster lines. The devision into two 4-fold track monitors simplifies the control of reversing loops. More information about this issue can be found in the file ”Reversing loop monitoring” at the download section.
  •  Including voltage monitoring: is there no voltage at the tracks (e.g. after short circuit) the occupied status will be `frozen` during the interruption.
  •  Track voltage and feedback bus are galvanically separated by opto couplings from the power supply.
  •  The feedback modules RS-8 can be combined with other feedback modules (RS-16-O, LR101 or LS110) as required.
  •  Available as ready to use finished module, as finished module in a case or as a kit on a 110x96mm pc-board with 4 bores for assembly purposes (suitable enpty case as LDT-02 for kits from version 3.2 and assembly material can be found under accessories).
  •  Components from the Digital-Professional-Series can be operated on your digital system without any problem. The RS-8 is compatible to the used RS-feedback bus.
  •  The finished module and the finished module in a case comes with 24 month warranty.
  •  Each feedback module RS-8 will be supplied with a detailed operating-/respectively assembly-instruction. Those instructions can be found within the next section.
  •  You can purchase the feedback module as a kit (-B), as tested finished module (-F) or as tested finished module in a case (-G).

Downloads and use full links.

Instructions regarding this article can be found here: Downloads RS-8.
Instructions for all LDT-Components can be found here: Overview Downloads.

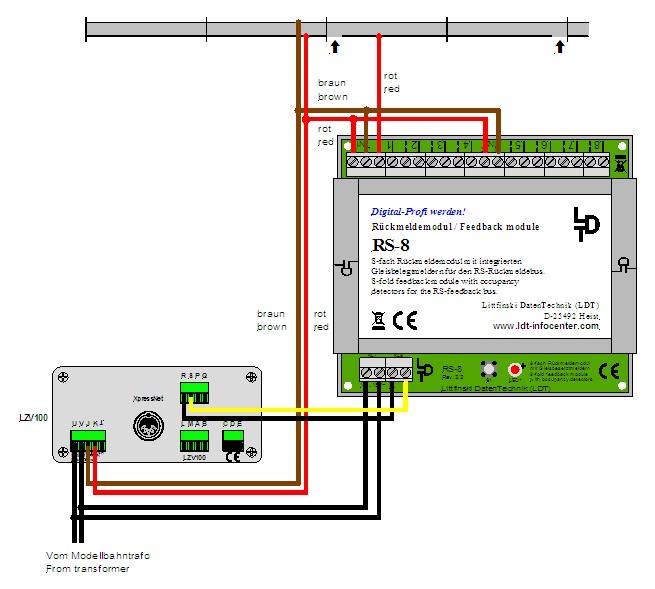

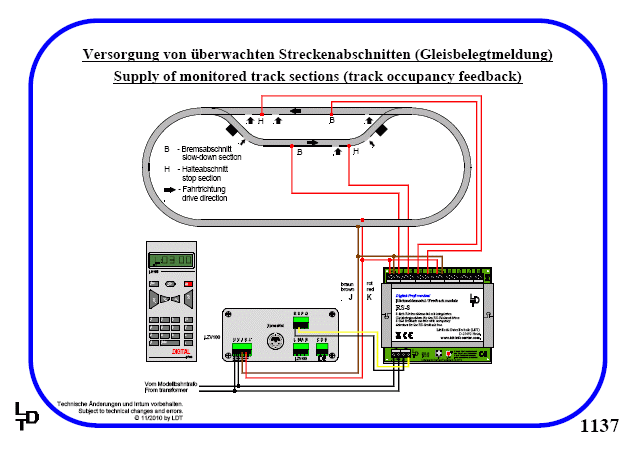

Sample-connections regarding this article can be found here: Sample-Connections RS-8.
Sample-connections for all LDT-Components can be found here: Overview Sample-Connections.
